FF 100

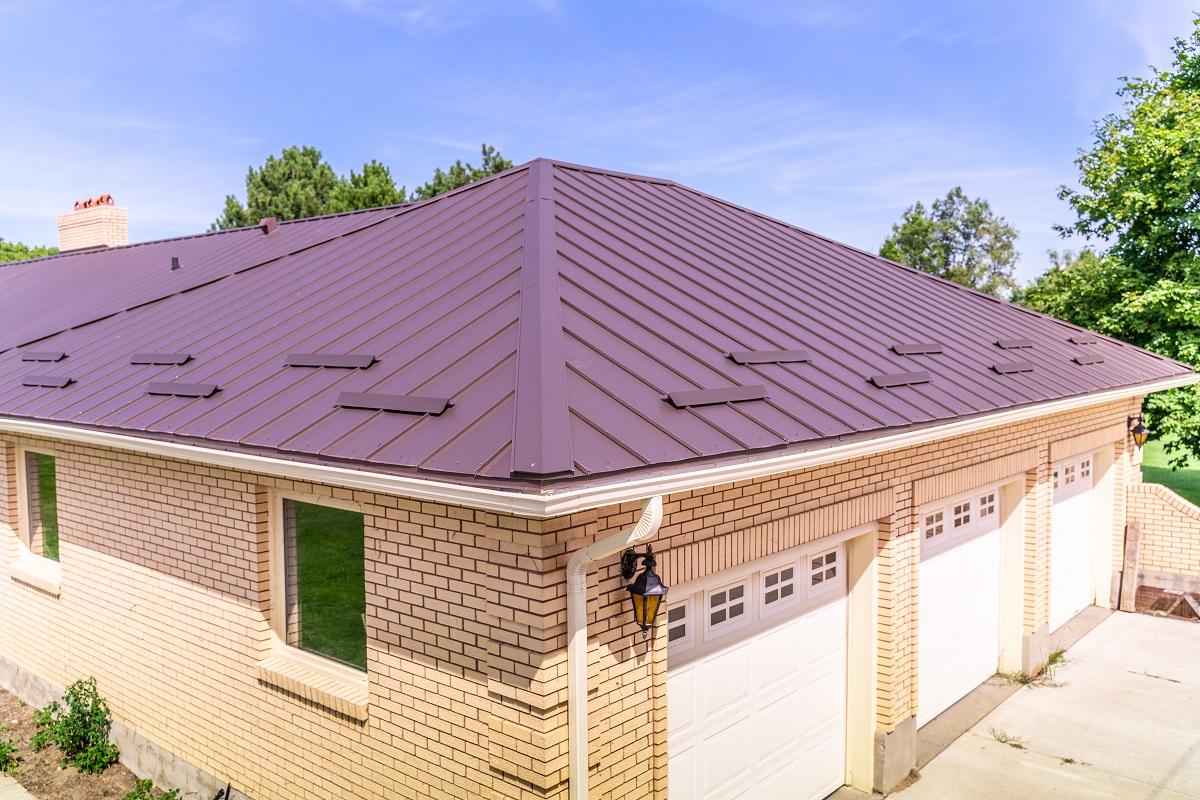

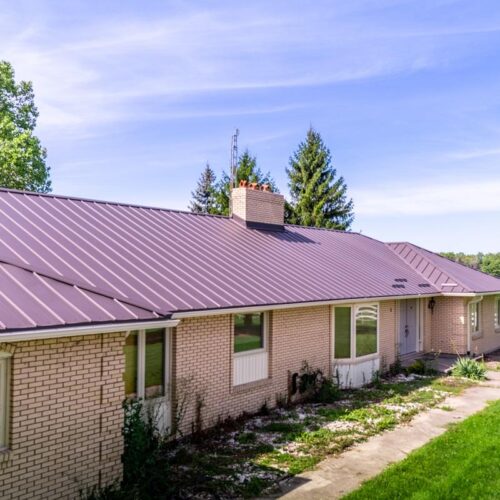

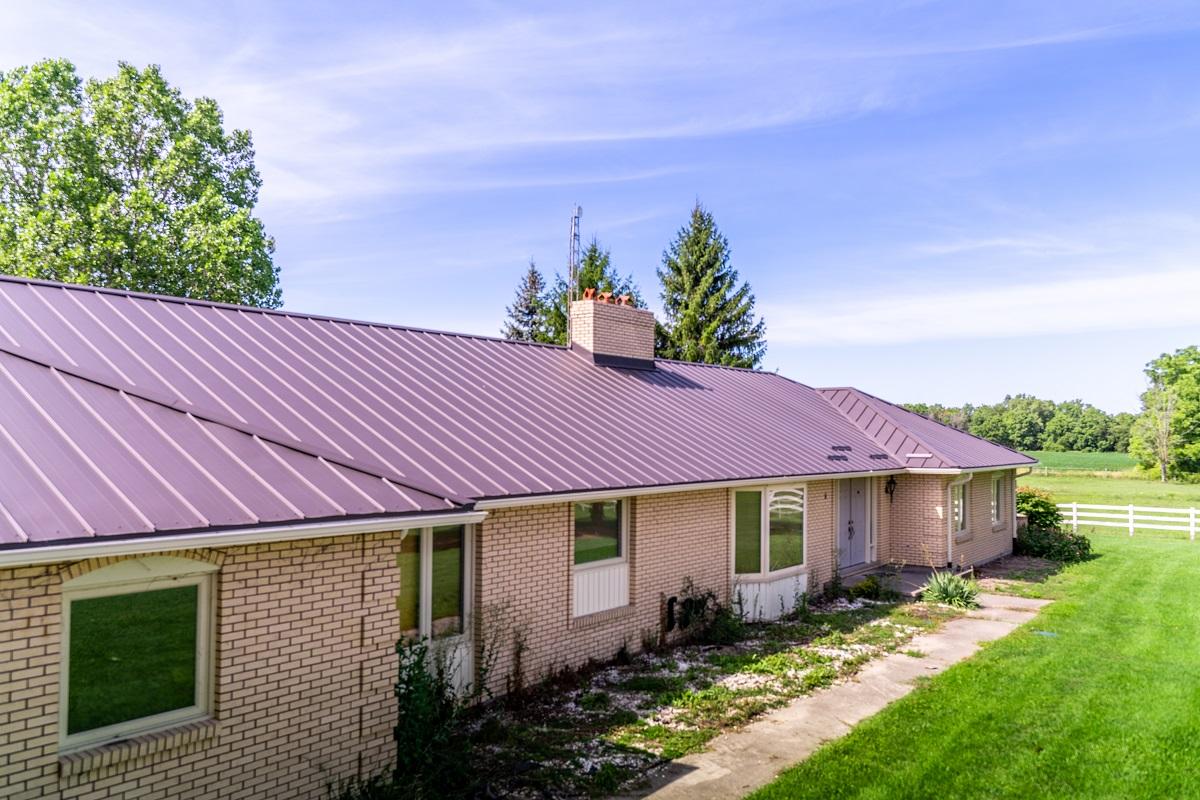

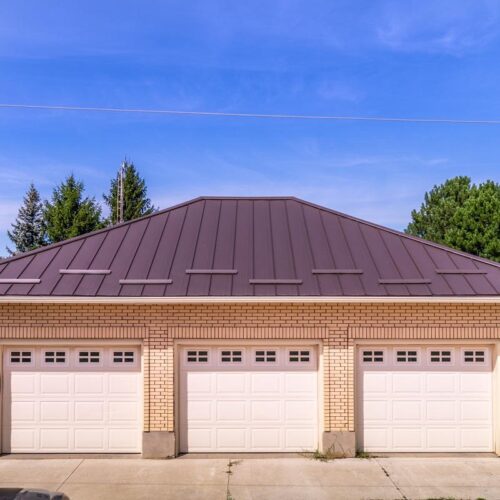

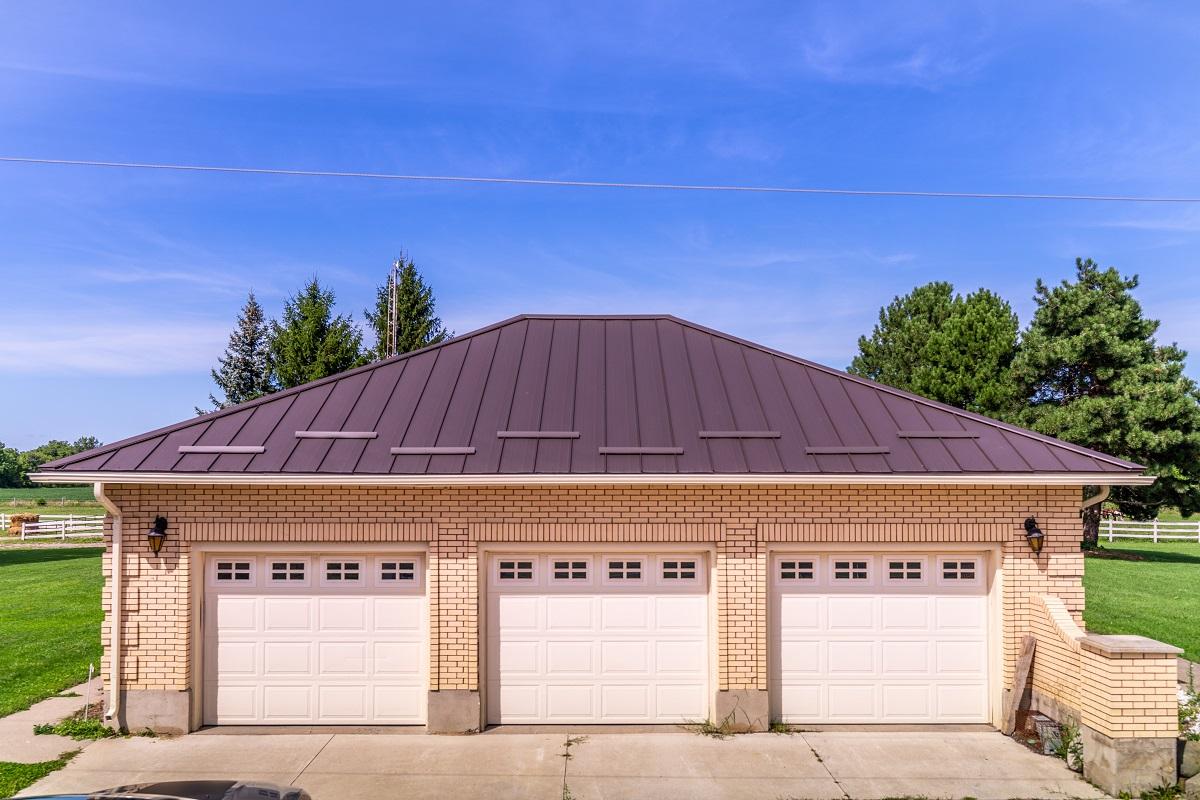

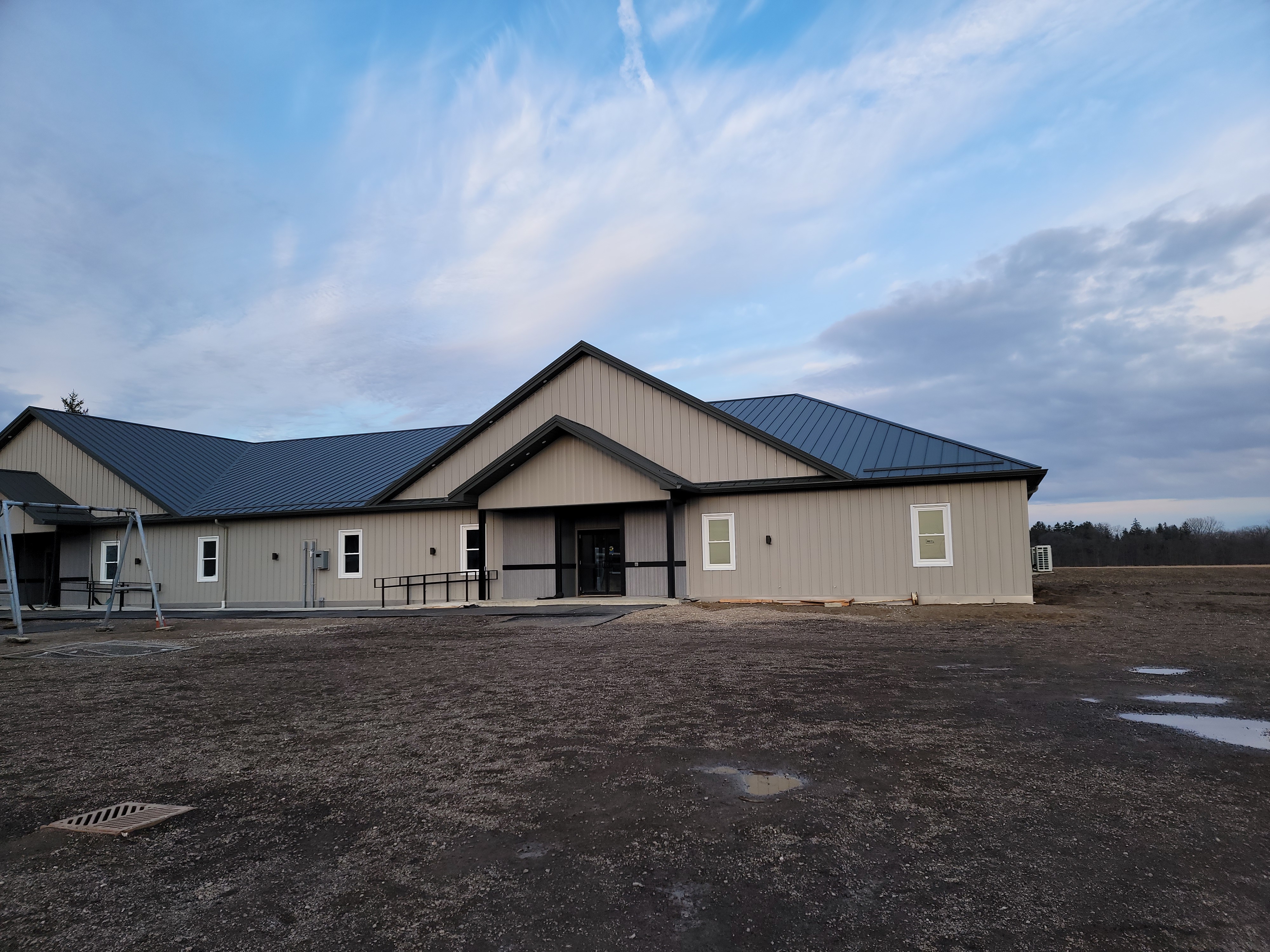

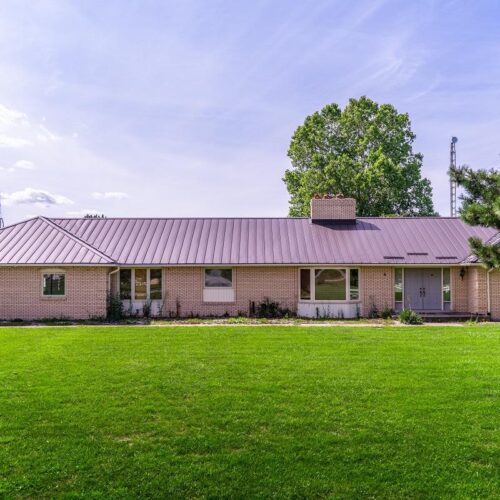

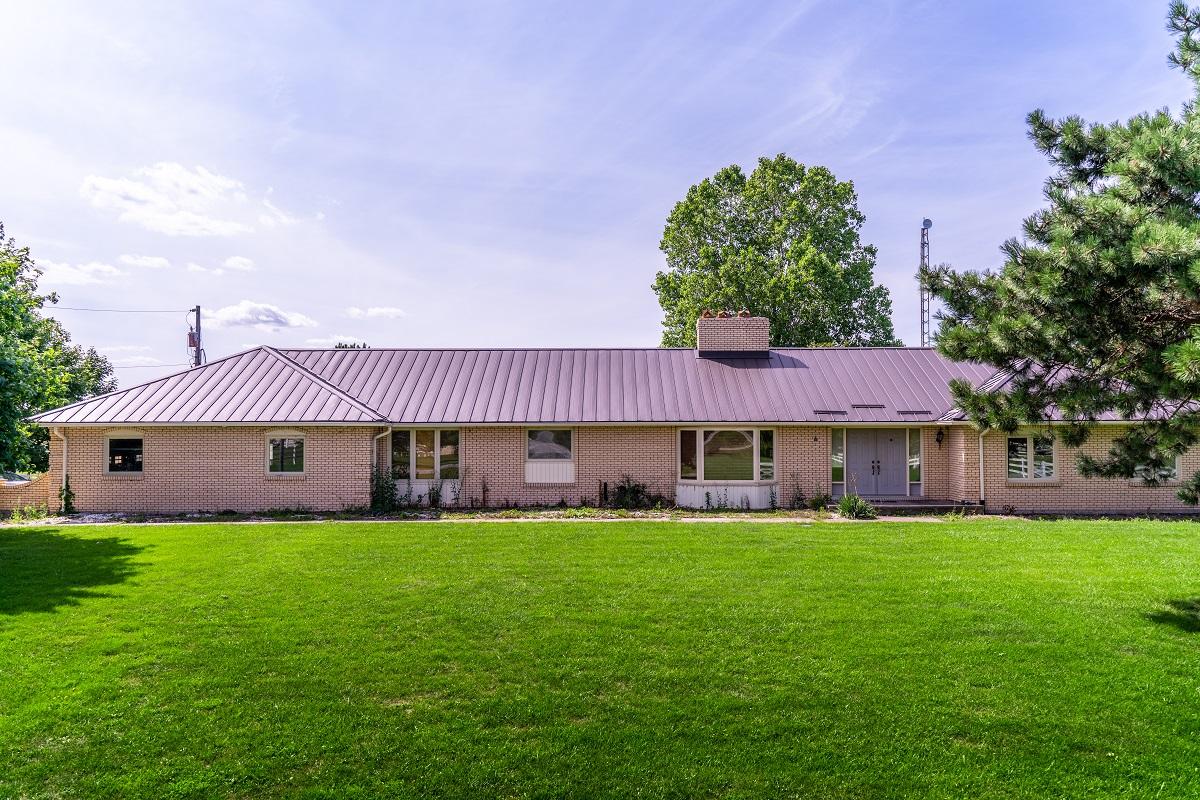

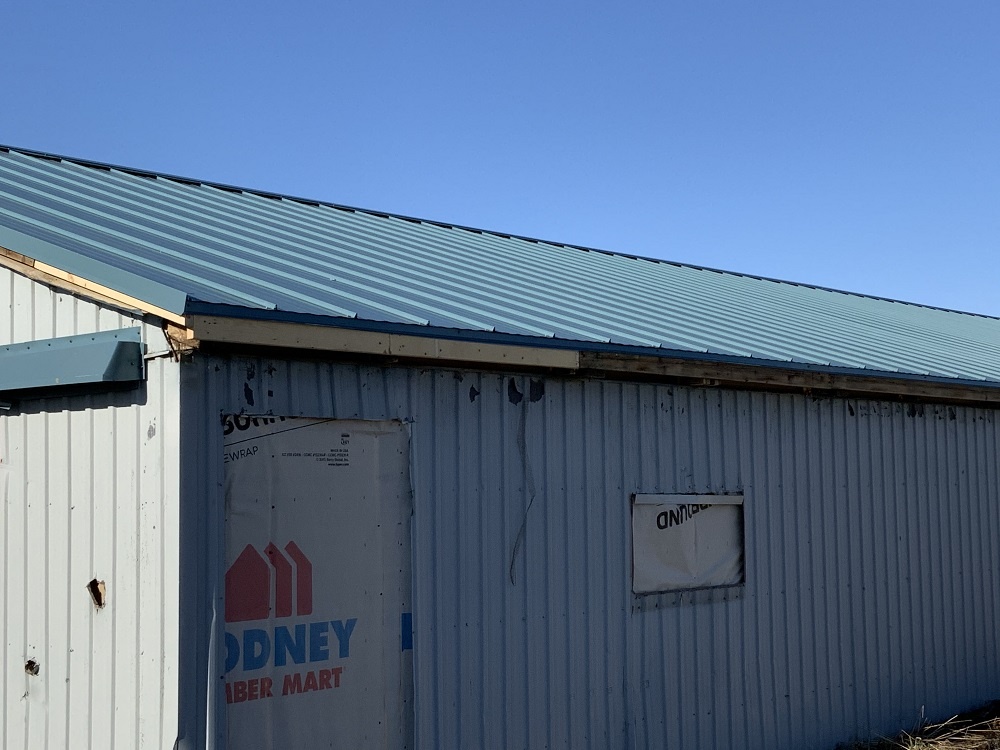

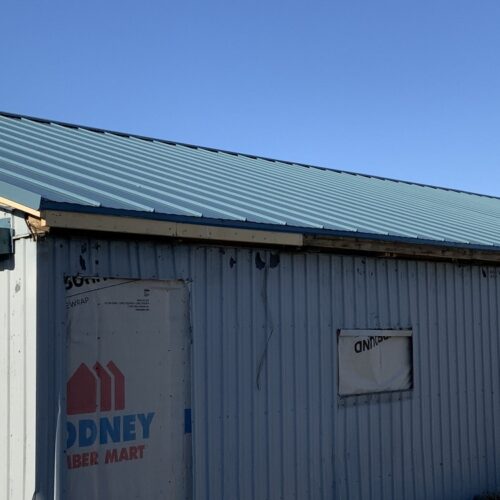

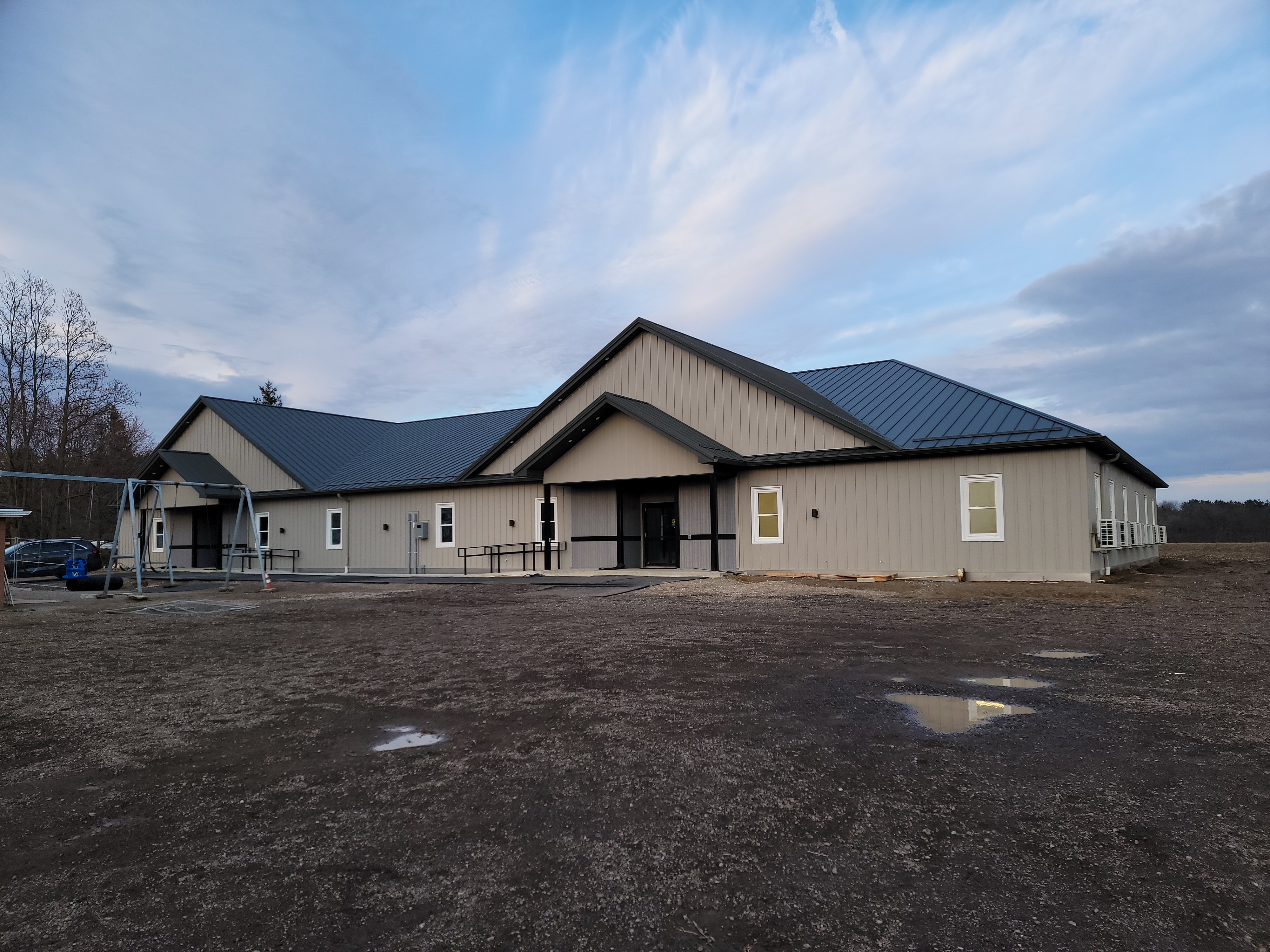

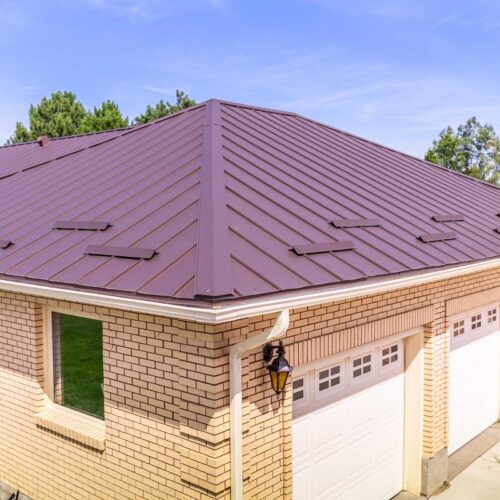

A Snap-Lock panel with no hidden clips or special tools required. Our easiest installing standing seam roofing system yet. Compatible with most trimming systems. A unique panel profile ensures a leak free and solid lock as well as providing that modern curb appeal you can be proud of.

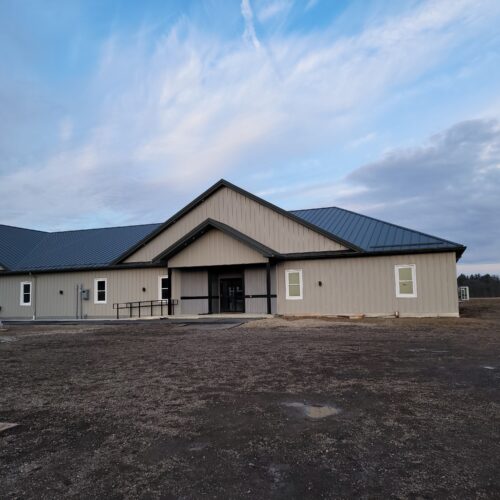

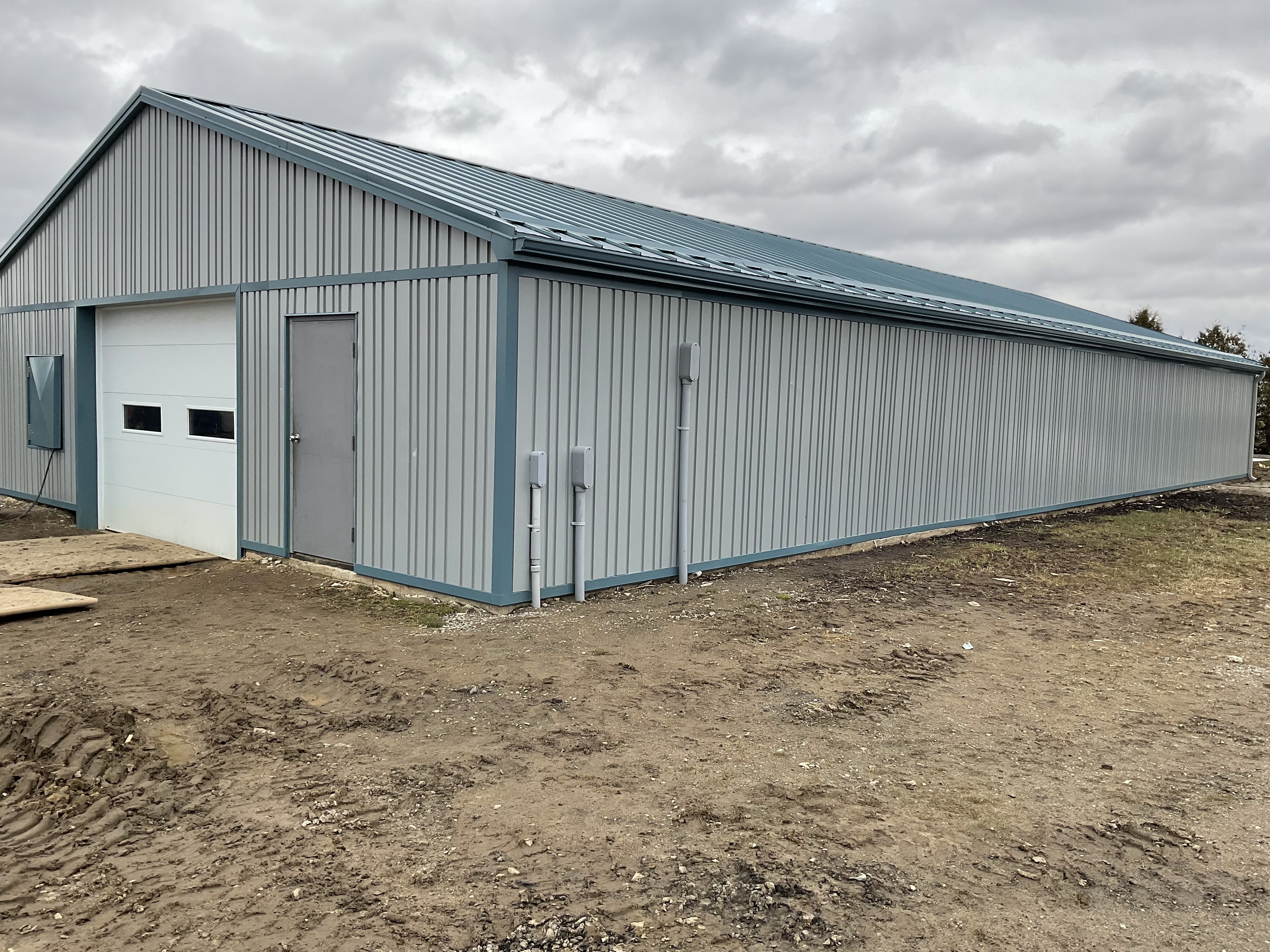

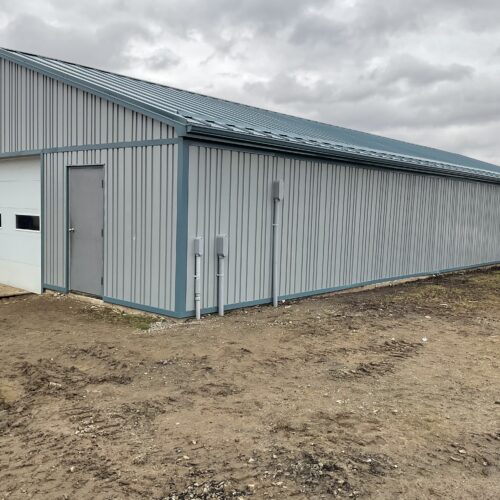

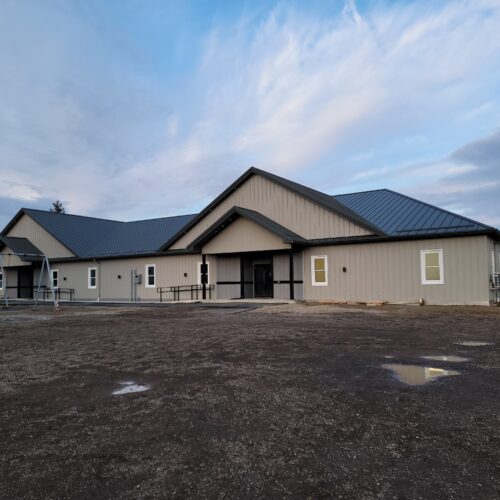

Makes eye catching siding and interior wall panels.
A variety of options available including colors, thickness gauges, trims, and panel length provide features that stand out and install with traditional ease. Providing a watertight seal on slopes down to 3:12 this Snap-Lock system can be screwed directly to solid plywood substrate or strapping.

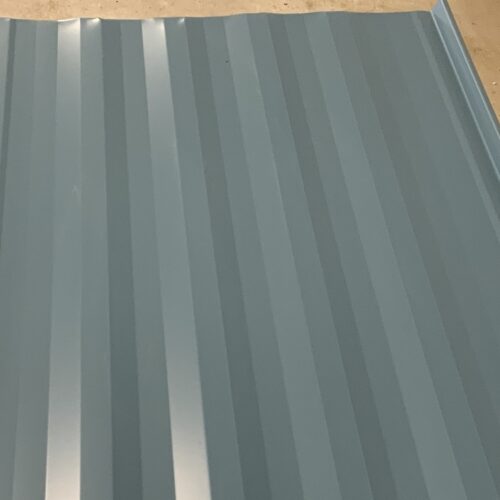

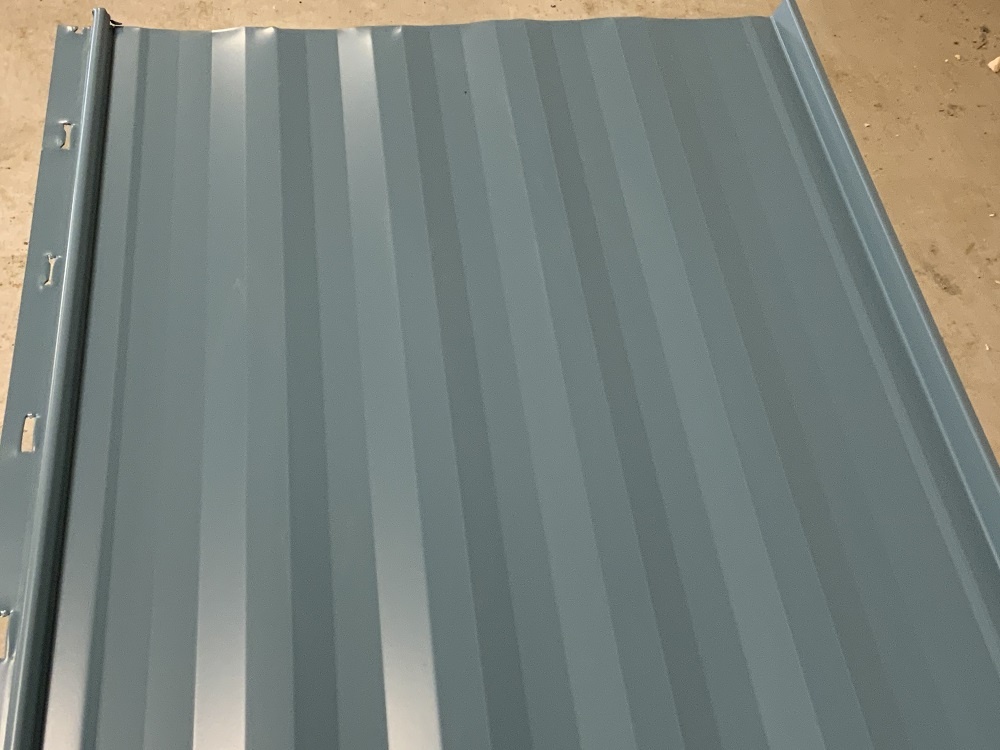

Striations along the profile prevent the oil canning effect of steel during temperature changes. Engineered to provide a lifetime of good-looking results.
| Panel Length | 1-30 ft delivered 31-100+ ft rolled on site |
| Panel Width | 17.188” Call for custom widths |
| Panel Gauge | 26 Ga Standard 24 Ga Optional 22 Ga Option |
| Rib Height | 1” |
| Fastener | Screw direct to hidden nail flange |
| Recommended Slope | 3:12 + |
| Application | Siding Roofing Soffit Interior Walls High snow volume regions Direct sunlight Regions Rain collection systems Solar system compatible |
| CAD Drawing | Link to CAD Drawing |
